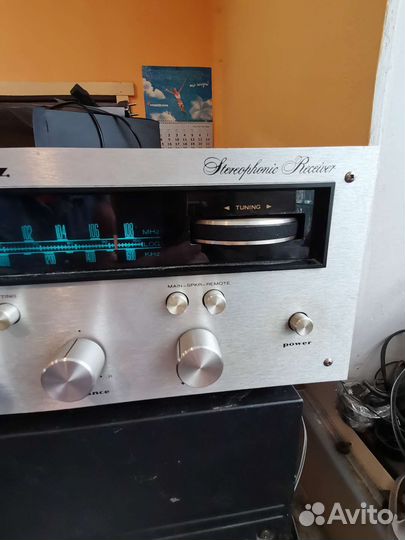

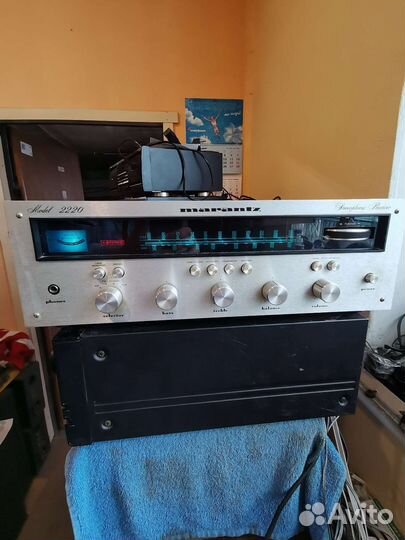

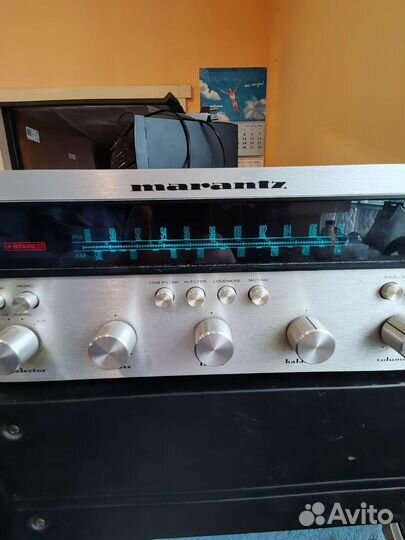

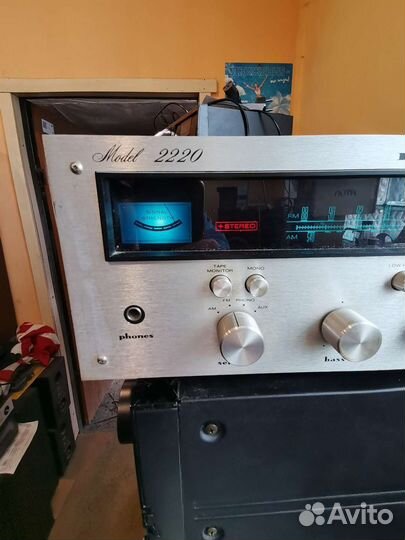

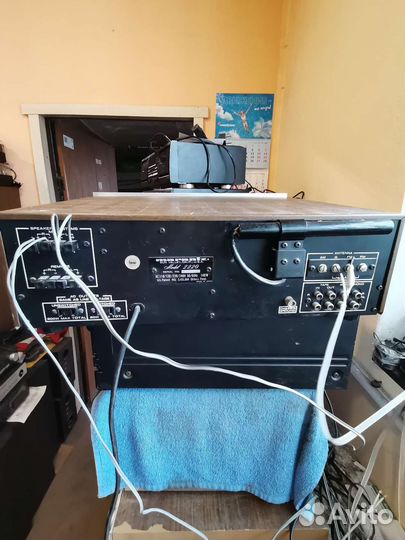

Marantz 2220 стерео ресивер

Manufacturer: Marantz Model: 2220 Years of manufacture: 1973 - 1974 Manufactured in: Color: silver (wooden cabinet WC-22) Remote control: no Power consumption: 110 / 29 W (max/idle) Dimensions: 441 x 137 x 350 (WxHxD) Weight: approx. 15 kg Original price approx.: 1'475 DM Connections Number of inputs: Tape In, Aux: 180 mV / 100 kOhm Phono MM: 1,8 mV / 47 kOhm Antenna FM (75/300 Ohm) / MW. Number of outputs: Tape Out: 775 mV Headphones (6,3mm jack, front) 2 pairs of loudspeakers Technical Data Amplifier Continuous power (at distortion): 16 Ohm: 2x 12 W 8 Ohm: 2x 20 W 4 Ohm: 2x 40 W Dynamic power: 8 Ohm: 4 Ohm: Total harmonic distortion: < 0,9% Dämpfungsfaktor: 45 (8 Ohm) Frequenzgang: 20 - 20.000 Hz (±1 dB) Leistungsbandbreite: 10 - 50.000 Hz Signalrauschabstand: 77 dB (Hochpegel) Stereokanaltrennung: >35 dB Tone control: Bass: ±14 dB (50 Hz) Treble: ±12 dB (15 kHz) Loudness: 100 Hz (+8 dB), 10 kHz (+5 dB) High Filter: yes Low Filter (Subsonic): yes Mute: Direct/Line-Straight: no Tuner Reception: FM/MW Frequencies: FM: 87.5 - 108 Mhz MW: 540 - 1602 kHz Frequency response: 50 - 15,000 Hz Input sensitivity: FM: 3.0 µV (IHF), 1.9 µV of 30 dB. MW: 30 µV Distortion factor: FM: 0.5% (stereo). Signal-to-noise ratio: Channel separation: FM: 40dB (at 1 kHz). Selectivity: Common wave selection: FM: 3dB Spurious wave selection: FM: 50 dB IF attenuation: IF attenuation: AM suppression: Station memory: no
