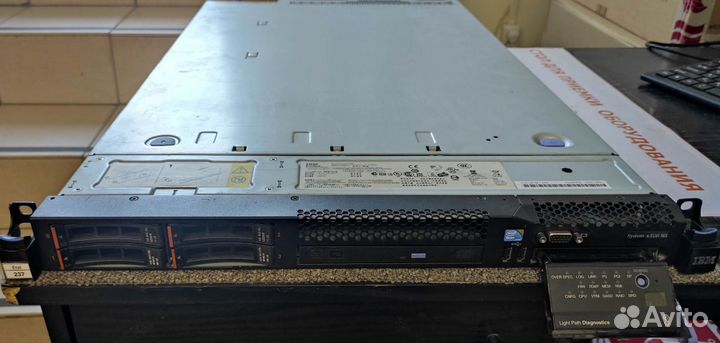

Сервер IBM System x3550 M3

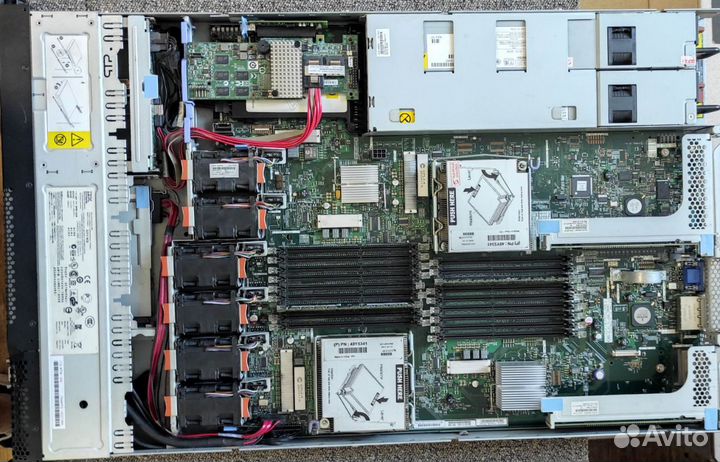

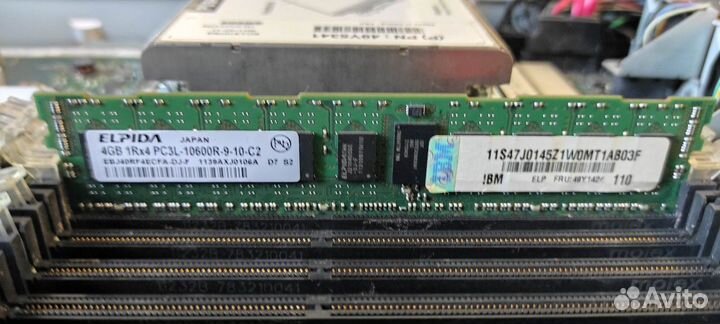

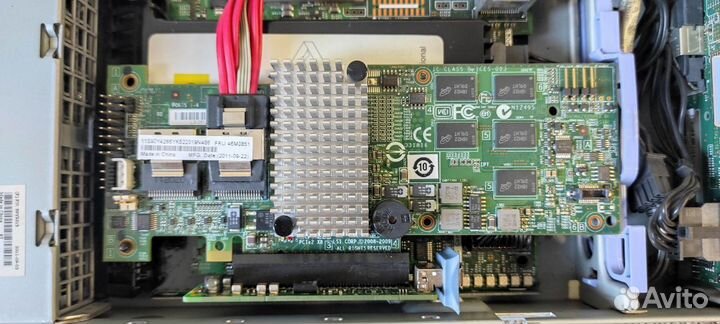

Сервер IBM System x3550 M3 ➢ Общее Производитель - IBM Модель - System x3550 M3 ➢ Платформа Модель серверной платы - 59Y3793 Размер (U) - 1U Форм-фактор - Rack ➢ CPU 2 x Intel(R) Xeon(R) CPU X5675 @ 3.07GHz Speed 3070 MHz, Turbo 3460 MHz Execution Technology 6 cores; 12 threads L1 cache 64 Кб x10 L2 cache 256 Кб x10 L3 cache 12 Mб ➢ System Memory 18 разъемов для модулей памяти DIMM 2 x ELPIDA - 4GB 1Rx4 PC3L-10600R-9-10-C2 1333 MHz DDR3 ECC REG Installed: 8GB UP to 288GB ➢ On-Board Devices Chipset - Intel 5520 server chipset RAID-контроллер - IBM ServerRAID M5015 8-internal channel SAS 6G RAID (0,1,10,5,50) controller 512MB cache with BBU (upgreadable to RAID 6 & 60) 2 PCI Express (PCIe) 2.0 x16 Integrated Management Module (IMM) ➢ Input / Output DVD - UltraSlim Enhanced SATA DVD Multi-Burner (with 4 HDD bays system only LAN - Dual-channel Broadcom BCM5709C PCI-E Gigabit LAN Network Interface Controller USB - 5 USB ports (2 rear + 2 headers + 1 internal for an embedded hypervisor) Video - 2 VGA port (1 rear + 1 headers) ➢ Power supplies 2 x 675 W Hot Plug ➢ Drive Bays Hot-swap - 4 Hot Plug SATA/SAS SFF 2.5" БЕЗ ДИСКОВ.
